Overview:

Best For

  • Microsoft Hyper-V
  • VMware vSphere
  • KVM

Backup and restore processes are slow, expensive, and risky

Traditional backup and recovery solutions fall short because they are:

  • Too slow. Users expect instant recovery and minimal data loss, but legacy backup and recovery strategies can’t keep pace. As a result, many organizations fail to meet backup and recovery windows.
  • Too expensive. As storage grows, companies struggle with the rising cost of protecting that data on premises. Additionally, bandwidth costs and constraints become more acute with larger datasets.
  • Too risky. Many organizations still rely on tape, which increases risk exposure because of the potential for lost media in transport, increased downtime and data loss, and limited testing ability.
  • Too complex. With an ever-increasing number of critical applications to protect, along with complex backup architectures, multiple backup apps, and error-prone legacy technologies, backup is incredibly complex.

Send and archive data to the public or private cloud

NetApp AltaVault (formerly SteelStore) storage enables customers to securely back up data to any cloud at up to 90% less cost compared to on-premises solutions. AltaVault gives customers the power to tap into cloud economics while preserving investments in existing backup infrastructure and meeting backup and recovery SLAs.

AltaVault virtual appliances for Microsoft Hyper-V, VMware vSphere and KVM

AltaVault virtual appliances are an ideal solution for medium-sized businesses that want to get started with cloud backup. They’re also ideal for enterprises that want to protect branch offices and remote offices with the same level of protection they enjoy in the data center. AltaVault virtual appliances provide the flexibility of deploying onto heterogeneous hardware while still providing all of the features and functionality of hardware-based appliances. AltaVault virtual appliances can be deployed onto Microsoft Hyper-V, VMware vSphere or KVM hypervisors, enabling customers to choose the hardware that works best for them.

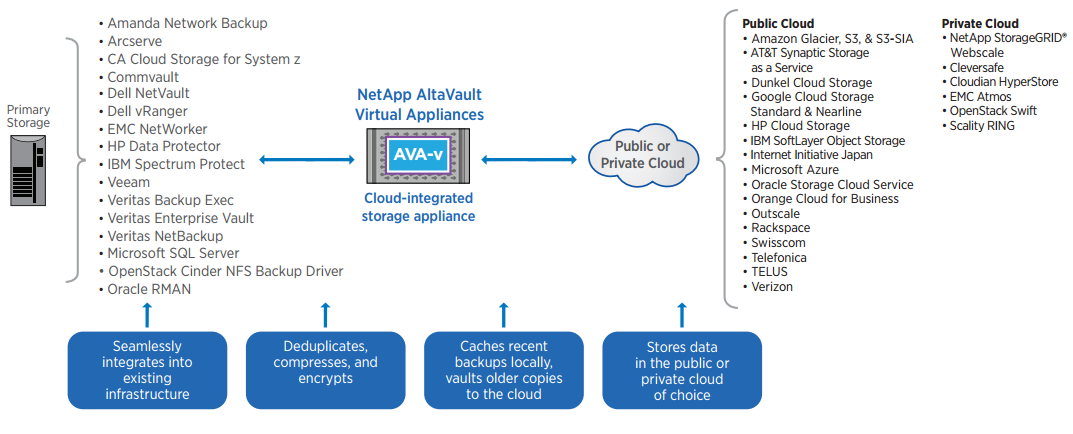

How AltaVault Appliances Work

NetApp AltaVault provides seamless integrations with existing applications and cloud service providers.
NetApp AltaVault provides seamless integrations with existing applications and cloud service providers.

Features:

Unparalleled efficiency

  • Industry-leading data reduction. AltaVault uses inline deduplication and compression, resulting in up to 30:1 data reduction ratios. This means you store less data in the cloud and can get it there more quickly.
  • Network and cloud optimization. Built-in WAN optimization and deduplication reduce the amount of data transported to cloud and speed transfer times by up to 4x. AltaVault intelligently throttles data, which saves you money (and time). QoS makes sure that data moves to and from cloud storage at the speed your business requires.
  • Faster data restoration. AltaVault improves recoverability because 95% of restores occur from local cache. With intelligent prefetching, AltaVault restores data from the cloud within minutes. With AltaVault, customers can restore data up to 32x more quickly than with tape.

Enterprise scale on an open platform

  • Flexible deployment and scale. Choose the offering that is right for you: physical, virtual, or cloud based in the AWS or Azure clouds. AltaVault appliances start as small as 2TB and scale up to 57PB of protected data in the cloud, making it the most scalable cloud-integrated storage on the market.
  • Compatibility with existing backup software. Do you love your backup software? So do we. AltaVault is compatible with all leading backup and archival software solutions, including EMC, Symantec, IBM, and Commvault. Don’t waste time and effort ripping and replacing your backup software and retraining IT staff.
  • Cloud choice and agility. Pick a cloud, any cloud, and AltaVault likely supports it. AltaVault supports 95% of all leading cloud storage providers and platforms on the market today. Cloud providers rise and fall, and you never want your data stuck with a cloud provider. AltaVault cloud agility allows you to free your data.

Ironclad security and compliance

  • Is encrypted and compliant. Data is encrypted and secure at all times—in flight and at rest—using AES 256-bit encryption, compliant with FIPS 140-2 Level 1 (validation coming soon) and industry-standard TLS encryption.1 Encryption keys can be managed locally with KMIP and never leave your data center.
  • Controls your data. Confirm that only qualified employees can access data in AltaVault, with role-based access controls and integration with Terminal Access Controller Access Control System (TACACS) and Remote Authentication Dial In User Service (RADIUS). Use the management access control list to secure the appliance by exposing only the necessary protocols, ports, and networks.
  • Shrinks recovery time and data loss. Reduce RTO by retrieving data more quickly in a disaster by accessing locally cached backups on the AltaVault appliance. Reduce RPO by immediately getting data off site so recovery points are as recent as your latest backup, rather than the last time tapes were shipped off site.
  • Prepares for disasters. Recover on-premises workloads in the cloud during DR tests or declarations with the AltaVault cloud-based appliance in AWS and Azure.

Easy to deploy and manage

  • Deploy more quickly. Get up and running with AltaVault in less than 30 minutes. In three simple steps, you can start sending data to the cloud.
  • Manage smarter. Reduce tape management overhead and manual tasks that are error-prone and time consuming, allowing you to allocate valuable employee resources to other projects. Remote monitoring and management capabilities from a GUI-driven management dashboard give administrators complete control from across the data center or across the world.
  • Take advantage of world-class services and support. Professional services, from NetApp and partners, can implement AltaVault in heterogeneous or NetApp environments to deliver an optimized solution that meets your specific needs. Support services help you achieve continuous operations, operational excellence, and improved cost efficiency.

Specifications:

AltaVault AVA400 and AVA800 Model Physical Appliances

Virtual Appliances

Backup Mode

Cold Storage Mode

Attributes AVA-v2 AVA-v8 AVA-v16 AVA-v32 AVA-v2 AVA-v8 AVA-v16 AVA-v32
Performance
Backup Throughput (Maximum) 500GB/hr 1TB/hr 2TB/hr 3TB/hr 350GB/hr 350GB/hr 350GB/hr 350GB/hr
Cloud
Cloud Storage Providers Supported1 Multiple; visit the solution connection for more details
Cloud Capacity Supported2 10TB 40TB 80TB 160TB N/A N/A N/A N/A
Logical Cloud Capacity3 300TB 1.2PB 2.4PB 4.8PB 625TB 2.5PB 5PB 10PB
Local Disk Storage
Usable Local Capacity (Maximum) 2TB 8TB 16TB 32TB 2TB 8TB 16TB 32TB
RAID Protection RAID 6 recommended for datastore storage
Network
Storage Networking Supported CIFS/SMB, NFS
Server
Supported Hypervisors vSphere ESXi, Hyper-V, KVM
Third-Party Application
Backup/Archive Software Supported Multiple; visit the solution connection for more details

1 For details on technical specifications, please contact your nearest NetApp/channel sales associate.
2 5x of appliance usable local capacity; for example, a maximum of 160TB of cloud capacity can be supported by 32TB of usable local capacity.
3 Backup mode: calculated using 30x deduplication. Cold Storage mode: assumes 50% compression and 100MB file size.

Compare:

Compare NetApp AltaVault models to find the right cloud-integrated backup and archival solution for your organization.

Features Physical Appliances Virtual Appliances Cloud-Based Appliances
Available Models AVA400
AVA800
AVA-v2 for VMware
AVA-v8 for VMware
AVA-v16 for VMware
AVA-v32 for VMware
AVA-v2 for Hyper-V
AVA-v8 for Hyper-V
AVA-v16 for Hyper-V
AVA-v32 for Hyper-V
AVA-v2 for KVM
AVA-v8 for KVM
AVA-v16 for KVM
AVA-v32 for KVM
AVA-c4 for Azure
AVA-c4 for AWS
AVA-c8 for AWS
AVA-c16 for AWS
Use Cases AltaVault physical appliances are often deployed in the data center to protect large volumes of data. These data sets typically require the highest levels of performance and scalability available. AltaVault virtual appliances are an ideal solution for medium-sized businesses that wish to get started with cloud backup, or for enterprises that wish to protect branch offices and remote offices with the same level of protection they enjoy in the data center. AltaVault cloud-based appliances are designed to offer an efficient and secure approach to backing up cloud-based workloads. Companies without a secondary data center, or those looking for a low-cost tertiary recovery site, also can use them for disaster recovery purposes.
Cache usable capacity 32-384TB 2-32TB 4-16TB
Cache RAW capacity 48-576TB N/A N/A
Logical data size in cloud Up to 57PB in backup mode
Up to 10PB in cold storage mode
Up to 4.8PB in backup mode
Up to 10PB in cold storage mode
Up to 2.4PB in backup mode
Up to 6.4PB in cold storage mode
Maximum Ingress Throughput, Aggregate Up to 9.2TB/hr Up to 3TB/hr Up to 3TB/hr
Form Factor Starts at 10U appliance vSphere ESXi, Hyper-V, KVM AWS or Azure based
