Unified Data Storage

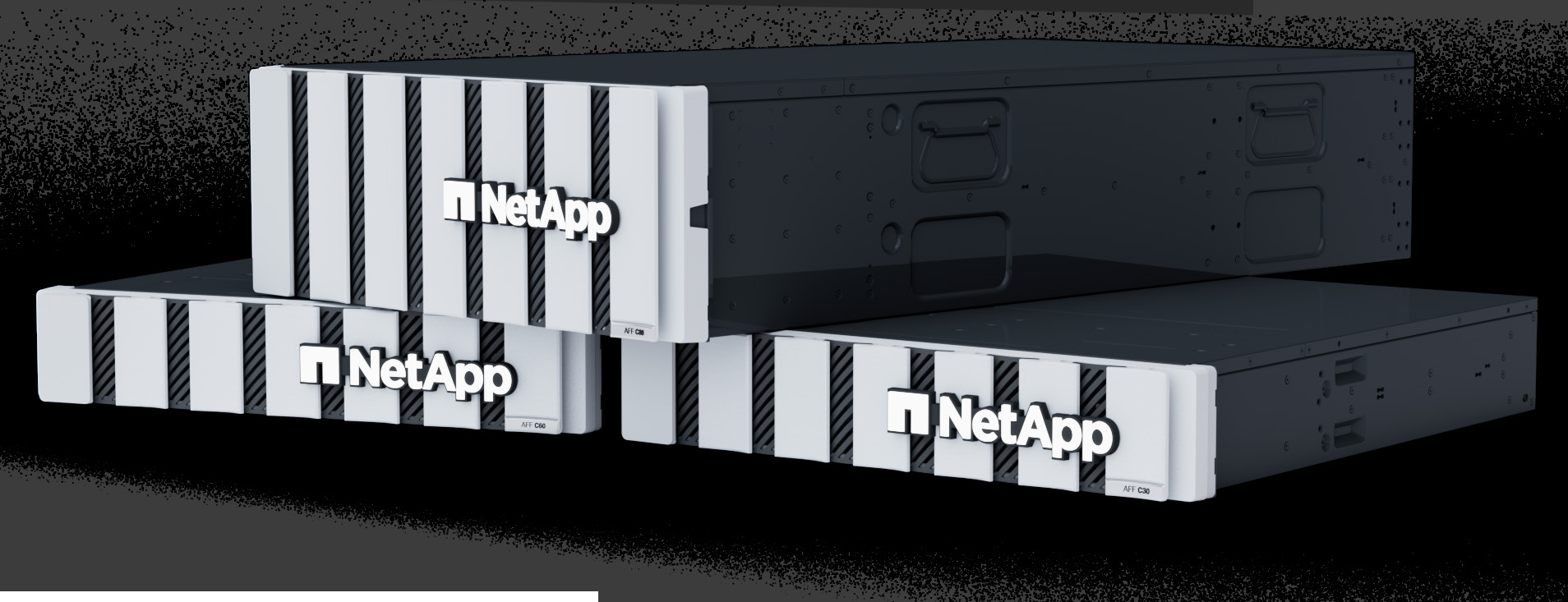

NetApp AFF C-Series
NetApp AFF C-Series product family is game-changing capacity flash storage designed to modernize general-purpose workloads and increase IT agility without breaking the bank.
Organizations are striving to make their ITOps more cost- and energy-efficient while also meeting their performance and capacity requirements.
AFF C-Series systems help customers achieve these goals by reducing data center costs with a solution that's more sustainable and efficient than hybrid flash and HDD systems. The budget-friendly AFF C-Series is ideal for a wide range of general-purpose applications.
It's also a great choice for hosting database and VM copies for DevTest sandboxes and serves as an ultrareliable replication target. AFF C-Series systems are built on high-density NVMe capacity flash technology.
They also offer scale and flexibility to meet dynamic storage demands. This facilitates uninterrupted growth and adaptability, making the AFF C-Series ideal for general-purpose applications and consolidated workloads.
The AFF C-Series features comprehensive management with one intuitive interface for all storage and Data Services delivering simplified workflows, centralized administration, and complete control. With the AFF C-Series, your storage infrastructure is not just meeting current demands—it's primed to adapt to the evolving needs of the future.
Key Highlights
At a glance
- Users modernizing from hybrid flash can reduce their footprint by up to 99%, consume up to 97% less energy…
- Unified capacity for block, file, and object workloads provides seamless scaling from 122TB to over 700PB of effective capacity.
Features and Benefits
The capabilities that set NetApp AFF C-Series apart.
Unlock unprecedented, unified capacity for block, file, and object workloads
Nondisruptive Growth and Adaptability
Achieve nondisruptive growth and adaptability by seamlessly scaling your storage infrastructure from 122TB to 700+PB effective capacity.
Comprehensive Data Management
Enjoy comprehensive data management for consolidated workloads, including replication, data tiering, and adaptive QoS.
Centralized Management with NetApp Console
The NetApp Console centralizes management across your NetApp systems to simplify operations, consolidate insights, and safeguard every action with secure-first design.
High Availability
Built for 99.9999% availability.
Maximize storage density and efficiency to accelerate modernization
Reduce Data Center Footprint
Reduce data center footprint with ultradense drives and best-in-class data reduction.
Boost Performance and Slash Power Consumption
Boost performance and slash power consumption and environmental impact by modernizing from hybrid flash to the all-flash AFF C-Series.
Save on Storage Costs
Save up to 70% on storage costs through automated data tiering to the cloud.
Single Storage OS
Leverage a single storage OS to manage, protect, and mobilize data across your hybrid cloud.
Protect your data through real-time ransomware detection with industry-leading 99%+ accuracy
Cyberthreat Shielding
Shield your data from cyberthreats with built-in AI/ML-based ransomware detection, SIEM/XDR integrations, and guaranteed recovery that includes end-to-end orchestration.
Business Continuity and Disaster Recovery
Maintain business continuity and speed disaster recovery with integrated solutions that minimize disruptions, even during site failures.
Highest Level of Security and Compliance
Provide the highest level of security and compliance for sensitive data with the only enterprise storage validated by NSA CSfC for top-secret data.
Maximize density and efficiency
Superior Storage Density
Ultradense capacity flash combined with NetApp deduplication and compression delivers superior storage density without affecting performance.
Eliminate Storage Silos
The AFF C-Series eliminates inefficient storage silos to reduce storage sprawl, and boosts performance while slashing power consumption.
Unified Storage Management
With a single storage OS, you can seamlessly manage, protect, and mobilize data across data centers and hybrid cloud environments, streamlining operations and enhancing data management.
Unified storage OS powered by ONTAP
Effective and Secure Data Management
Part of our unified data storage portfolio, the AFF C-Series is powered by NetApp ONTAP software, which provides effective, secure data management and consistent access to data services across environments. A unified management experience results in ease of use and efficiency, eliminating infrastructure silos and data bottlenecks and delivering unmatched simplicity at scale.
Common Feature Set Across Environments
ONTAP provides a common set of features across on-premises and cloud storage, which simplifies operations so that IT teams can focus on strategic business priorities. It allows you to manage storage across a hybrid multicloud that spans flash, disk, and cloud running block, file, and object workloads. You can easily move data within or between storage clusters or to the cloud—wherever it's most useful. ONTAP is the foundation for the intelligent data infrastructure that powers data to drive innovation.
Consolidate workloads and expand capacity without disruption
Nondisruptive Clustering Scale-Out
Built on the nondisruptive clustering scale-out architecture in ONTAP, AFF C-Series systems allow you to expand capacity with ease, eliminating storage silos and painful data migrations.
Workload Consolidation
- Consolidate workloads on AFF C-Series systems, and safeguard SLAs in multiworkload and multitenant environments with built-in adaptive QoS
- Manage massively scalable NAS containers of up to 20PB and 400 billion files with a single namespace

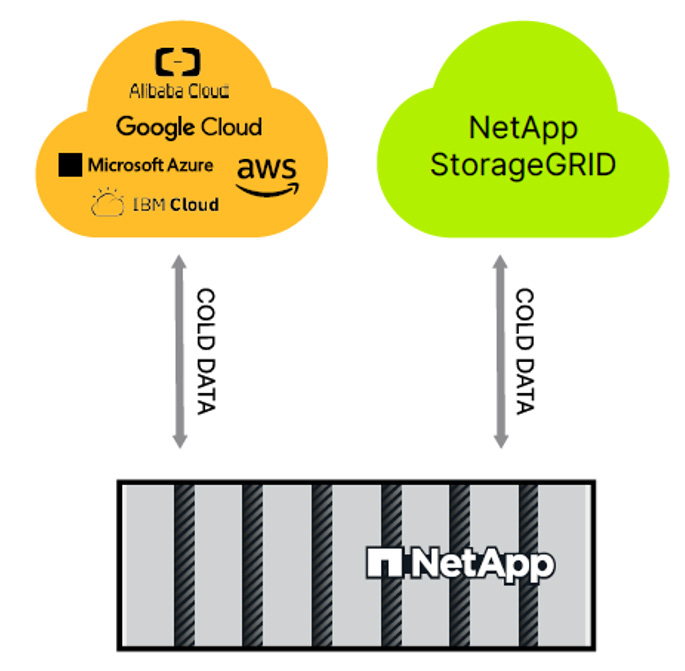

Tier cold data to the cloud for greater storage and energy savings
Hybrid Cloud Integration
A hybrid cloud IT infrastructure powered by NetApp technology lets you simplify and integrate data management across cloud and on-premises environments to meet business demands and gain a competitive edge.
Maximize Performance and Reduce Costs
With the AFF C-Series, you can maximize performance and reduce overall storage costs by up to 70% by automatically tiering cold data to the cloud. This allows you to reserve flash storage for more frequently used data while also consuming less energy.
Leading Cloud Integrations
With NetApp's leading cloud integrations, you can also connect to more clouds for more data services, such as backup and recovery, replication, tiering, and ransomware resilience. Best of all you can simply manage all your data, either on premises or in the cloud, with the NetApp Console centralized management plane.
Keep critical data secure, available, and protected
NSA CSfC Validated
NetApp AFF systems are the only hardened enterprise storage validated by the NSA's CSfC program to store top-secret data.
Integrated and Application-Consistent Data Protections
- Robust protection through multifactor authentication, immutable tamperproof NetApp Snapshot copies, end-to-end encryption, and automatic blocking of malicious file types
- Real-time autonomous ransomware detection, enhanced by embedded machine learning (ML) models, designed for industry-first 99%+ accuracy
- SIEM/XDR integrations
- Integrated active-active business continuity
- Cyber-vault capability that combines advanced encryption, immutable backups, and air-gapped storage
- Application-consistent data protection and clone management with the NetApp SnapCenter licensed capability
- Replication to any NetApp AFF or FAS system on the premises or in the cloud with NetApp SnapMirror technology
- Guaranteed recovery with end-to-end orchestration through the NetApp Ransomware Recovery Guarantee and Ransomware Recovery Assurance Service
Integrate business continuity and get fast disaster recovery
Constant Data Availability
With AFF, you can maintain constant data availability with zero data loss and zero downtime if a disruption or disaster occurs.
NetApp MetroCluster Software
NetApp MetroCluster software replicates your data synchronously to a separate location to protect your entire system. If something goes wrong at one site, your applications automatically and instantaneously switch to the other site.
SnapMirror Active Sync
For a more tailored approach, choose NetApp SnapMirror active sync to cost-efficiently replicate the most critical data while taking advantage of the increased performance, greater flexibility, and enhanced load-balancing capability that come with the symmetric active-active architecture.
Comprehensive Security Solutions
With NetApp's comprehensive security solutions, you can achieve FIPS 140-2 compliance (Level 1 and Level 2) with self-encrypting drives. And you can meet governance, risk, and compliance requirements with security features such as secure purge, logging and auditing monitors, and write once, read many (WORM) file locking.
Future-proof your investments
Storage Lifecycle Program
Eliminate the headache of tech refreshes by using the Storage Lifecycle Program: Get a new controller every 3 years with support-managed updates included, or move to the cloud—whichever best meets your needs.
Storage Efficiency Guarantee
Achieve high performance while minimizing storage cost with the Storage Efficiency Guarantee: If we don't meet your workload goals, we'll make it right at no cost to you.
Ransomware Recovery Guarantee
Recover data with the Ransomware Recovery Guarantee: If you can't recover your data copies with help from NetApp or a partner, NetApp will offer compensation.
Flexibly consume storage resources
Flexible Consumption Options
Like the rest of the NetApp portfolio, AFF C-Series systems are available through traditional capital expenditure (capex) or as a service with the NetApp Keystone portfolio. Gain financial flexibility as you modernize, and better align IT expenditure to business needs.
AFF C-Series Software
Data access protocols
FC, iSCSI, NVMe/FC, NVMe/TCP, FCoE, NFS, SMB, S3
High availability
- Active-active controller architecture
- Up to 4 nodes per site on SnapMirror active sync (formerly SnapMirror Business Continuity)
- Nondisruptive maintenance, upgrade, and scale-out clustering
- Multisite resilience for continuous data access
Storage efficiency
- Inline data compression, deduplication, and compaction
- Space-efficient LUN, file, and volume cloning
- Automatic data tiering
Data management
- Intuitive onboard GUI, REST APIs, and automation integration
- AI-informed predictive analytics and corrective action
- QoS workload control
- Easy provisioning and data management from market-leading host operating systems, hypervisors, and application software
Scalable NAS
- Large-scale single namespace management with local and remote caching
- Asymmetrical striping of large files across ONTAP FlexGroup volumes
- API support for NAS volumes sharing their data through S3
Data protection
- Application-consistent Snapshot copies and restore
- Integrated remote backup/disaster recovery
- Synchronous zero-data-loss replication
- Tamperproof Snapshot copies
Security and compliance
- Autonomous ransomware protection
- Multifactor admin access
- Secure multitenant shared storage
- In-flight and data-at-rest encryption
- Regulatory-compliant data retention
- Multi-admin verification before executing sensitive commands
Cloud integration
- Seamlessly tier, back up, replicate, and cache data to private and public clouds
- Move data between major public cloud services
- Cloud mediator in NetApp Console
Expert Guidance
Thrive with expert-led storage guidance
Get tailored advice on how NetApp AFF C-Series fits your environment — from sizing and deployment to long-term optimization.
Technical Specifications
Exhaustive hardware and software metrics extracted directly from official documentation.
-
Maximum scale-out2–24 nodes (12 HA pairs)
-
Maximum SSDs2880
-
Maximum effective capacity707PB
-
Controller form factor4U with 48 SSD slots
-
PCIe expansion slots (per HA pair)18
-
FC target ports (64Gb autoranging)56
-
200GbE ports (100GbE/40GbE autoranging)24
-
100GbE ports (40GbE autoranging)36
-
25GbE ports (10GbE autoranging)56
-
10GBASE-T (1GbE autoranging)56
-
Storage networking supportsNVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, S3
-
OS versionONTAP 9.16.1 or later
-
Shelves and mediaNS224 (2U, 24 drives, NVMe QLC SSDs)
-
Power consumption (median)1654W
-
Host/client OS supportedWindows Server, Linux, Oracle Solaris, IBM AIX, HP-UX, macOS, VMware ESX
-
Maximum scale-out2-8 nodes (4 HA pairs)
-
Maximum SSDs480
-
Maximum effective capacity118PB
-
Controller form factor2U with 24 SSD slots
-
PCIe expansion slots (per HA pair)8
-
FC target ports (64Gb autoranging)24
-
200GbE ports (100GbE/40GbE autoranging)n/a
-
100GbE ports (40GbE autoranging)16
-
25GbE ports (10GbE autoranging)24
-
10GBASE-T (1GbE autoranging)24
-
Storage networking supportsNVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, S3
-
OS versionONTAP 9.16.1 or later
-
Shelves and mediaNS224 (2U, 24 drives, NVMe QLC SSDs)
-
Power consumption (median)628W
-
Host/client OS supportedWindows Server, Linux, Oracle Solaris, IBM AIX, HP-UX, macOS, VMware ESX
-
Maximum scale-out2-8 nodes (4 HA pairs)
-
Maximum SSDs288
-
Maximum effective capacity29.4PB
-
Controller form factor2U with 24 SSD slots
-
PCIe expansion slots (per HA pair)8
-
FC target ports (64Gb autoranging)24
-
200GbE ports (100GbE/40GbE autoranging)n/a
-
100GbE ports (40GbE autoranging)16
-
25GbE ports (10GbE autoranging)24
-
10GBASE-T (1GbE autoranging)24
-
Storage networking supportsNVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, S3
-
OS versionONTAP 9.16.1 or later
-
Shelves and mediaNS224 (2U, 24 drives, NVMe QLC SSDs)
-
Power consumption (median)628W
-
Host/client OS supportedWindows Server, Linux, Oracle Solaris, IBM AIX, HP-UX, macOS, VMware ESX
Compare NetApp AFF C-Series Series
Select the right scale for your workload demands.
| Model Name | Max Capacity | Port Config | Action |
|---|---|---|---|
| AFF C80 | 707PB maximum effective capacity, 2880 SSDs | 56 FC (64Gb), 24x 200GbE, 36x 100GbE, 56x 25GbE, 56x 10GBASE-T | Get Quote |
| AFF C60 | 118PB maximum effective capacity, 480 SSDs | 24 FC (64Gb), 16x 100GbE, 24x 25GbE, 24x 10GBASE-T | Get Quote |
| AFF C30 | 29.4PB maximum effective capacity, 288 SSDs | 24 FC (64Gb), 16x 100GbE, 24x 25GbE, 24x 10GBASE-T | Get Quote |
