Block-Optimized Storage

NetApp ASA

With the block-optimized NetApp ASA systems, NetApp eliminates that trade-off — via simple, resilient, secure all-flash storage with advanced data management and protection features for any budget. NetApp ASA enables storage modernization for every organization.

NetApp ASA

NetApp ASA systems modernize your SAN infrastructure, accelerating your most critical applications and virtualized apps, making data always available, and simplifying storage management.

The ASA family includes A-Series models designed for your most performance-demanding applications, and C-Series models optimized for cost-effective deployment of large-capacity applications, as well as serving as an ideal backup and DR target for ASA A-Series systems. Together, the ASA systems.

Key Capabilities

At a glance

  • Deliver exceptional performance that improves customers' experience and reduces time to results.
  • Slash operational risk and enhance business continuity by keeping business-critical data available, protected, and secure.
  • Transform your SAN environment with modern block storage that delivers a price advantage up to 50% less than other storage vendors…
NetApp ASA overview

Features and Benefits

The capabilities that set NetApp ASA apart.

Key Benefits

Simple

  • Leverage a storage solution so simple that anyone can deploy it, manage it, and upgrade it.
  • Get up and running in minutes, provision in seconds, and protect in one click; manage directly from vCenter.

Resilient

  • Trust NetApp to run your virtualized and database apps with resilient architecture, consistent performance, and intelligent data management.
  • Give your apps uninterrupted data access with an active-active architecture backed by a 99.9999% data availability guarantee.

Secure

  • Protect your business with the most secure storage on the planet.
  • Detect and defend against ransomware via industry-leading real-time ransomware detection and guaranteed recovery.

Keep critical data available, protected, and secure

Access your data with continuous availability

ASA systems provide continuous access to data during unplanned outages by using symmetric, active-active multipathing. With both active controllers capable of communicating to a LUN, multipathing gives you uninterrupted access to your data with rapid failover recovery. NetApp business continuity solutions help you maintain constant data availability with zero data loss and zero downtime in the event of a human-made or natural disaster. NetApp SnapMirror active sync provides application-level protection with automatic failover, enabling mission-critical business services to keep operating, even during a complete site failure. SnapMirror active sync also offers symmetric active-active support for block workloads on ASA systems across 2-node configuration at each site. It enables higher scalability and better performance, allowing you to distribute workloads across cluster without compromising the ability to protect your mission-critical workloads against disasters.

Integrated data protection

ASA systems come with a full suite of acclaimed NetApp integrated and application-consistent data protection software. Key capabilities include:
  • Native space efficiency with cloning and NetApp Snapshot copies that reduce storage costs and minimize performance impact.
  • NetApp SnapCenter software that provides application-consistent data protection and clone management to simplify application management.
  • NetApp SnapMirror technology that simplifies operations with built-in data protection across the hybrid cloud.

Security everywhere

Encryption and key management help guard your sensitive data on your premises, in the cloud, and in transit. Market-leading anti-ransomware protection for post-attack recovery safeguards your critical data from ransomware attacks and can prevent catastrophic financial consequences. With NetApp's proven and efficient security solutions, you can:
  • Detect and defend against ransomware in real-time with guaranteed recovery.
  • Prevent app disruptions, even during site failures, with integrated business continuity
  • Utilize immutable snapshots, lockable data, multitenant key management, and RBAC (role-based access control) to prevent unauthorized access to data.

Trust NetApp to run your apps with resilient architecture

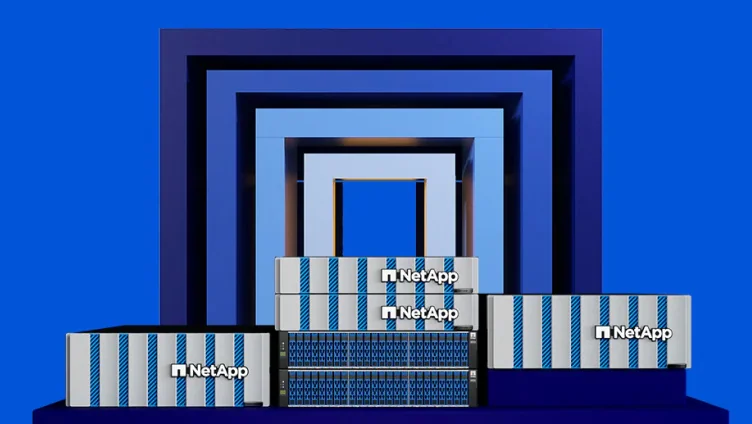

Netapp Asa features

Build a trusted SAN environment

NetApp ASA arrays are primed to take on any SAN workloads. Multitasking is not a problem. These systems maintain consistent high performance even while encrypting, compressing, deduplicating, and protecting your data. Build a trusted SAN environment with ASA solution that:
  • Support both NVMe/FC and NVMe/TCP, providing low latency and millions of IOPS in a cluster.
  • Accelerate your VMware infrastructure and your Oracle, SAP, and Microsoft SQL Server applications.
  • Meet performance objectives for all your applications even while efficiently encrypting, replicating, and storing data.
  • Support your dynamic business environment with always-on storage efficiency and adaptive QoS.

Simplify operations and reduce TCO

Intuitive user experience with ONTAP

Managing your infrastructure shouldn't be complex. As seasoned veterans in this industry, we know a thing or two about what works and what doesn't. The new NetApp ASA offers an intuitive user experience. And feature-rich, SAN-specific NetApp ONTAP data management capabilities are built in, enabling your staff to:
  • Quickly provision storage and simplify ongoing management of dedicated block workloads—VMware, Oracle, SAP, Microsoft SQL Server.
  • Streamline data management for your SAN workloads with simple, purpose-built block storage powered by ONTAP.
  • Significantly reduce your storage footprint, power consumption, and carbon footprint with high-density, highly efficient all-flash storage.

Flexibly consume storage resources

Like the rest of the NetApp portfolio, ASA systems are available via traditional capex or as a service with NetApp Keystone. Gain financial flexibility as you modernize and better align IT expenditure to business needs.

Leverage ONTAP One for SAN

Take advantage of ONTAP One for SAN, a comprehensive software suite that includes SAN protocols as well as ONTAP technologies applicable to SAN workloads, such as SnapRestore, SnapMirror, SnapCenter, FlexClone, FlexCache, FPolicy, encryption, SnapLock, and multitenant key management.

Future-proof your infrastructure

Storage Lifecycle Program

Eliminate the headache of tech refreshes with the Storage Lifecycle Program: Get a new controller every 3 years with support-managed updates included, or move to the cloud, whichever best meets your needs.

Storage Efficiency Guarantee

Achieve high performance while minimizing storage cost with the Storage Efficiency Guarantee: If we don't meet your workload goals, we'll make it right at no cost to you (4:1 for SAN workloads).

Six Nines (99.9999%) Data Availability Guarantee

Enjoy a Six Nines (99.9999%) Data Availability Guarantee: If you have unplanned downtime in excess of 31.56 seconds per year, we provide remediation.

Ransomware Recovery Guarantee

Recover data with the Ransomware Recovery Guarantee: If you can't recover your data copies with help from NetApp or partner assistance, NetApp will offer compensation.

ASA Software

Data access protocols

  • FC, iSCSI, NVMe/FC, NVMe/TCP

High availability

  • Active-active controller architecture
  • Symmetric active-active FCP, iSCSI, and NVMe multipathing
  • Nondisruptive maintenance, upgrade, and scale-out clustering
  • Multisite resilience for continuous data access

Storage efficiency

  • Inline data compression, deduplication, and compaction
  • Space-efficient cloning
  • NVMe deallocate for block space reclamation with Virtual Machines (VMs)

Data management

  • Intuitive on-board GUI, REST APIs, and automation integration
  • AI-informed predictive analytics and corrective action
  • Quality of service (QoS) workload control
  • Easy provisioning and data management from market-leading host operating systems, hypervisors, and application software

Data protection

  • Application-consistent NetApp Snapshot copies for backup and restore
  • Integrated remote backup and disaster recovery
  • Synchronous zero-data-loss replication
  • Tamperproof Snapshot copies
  • Symmetric active-active multisite replication for business continuity

Security and compliance

  • Multifactor admin access
  • In-flight and data-at-rest encryption
  • Regulatory-compliant data retention
  • Multi-admin verification before executing sensitive commands
Expert Guidance

Thrive with expert-led storage guidance

Get tailored advice on how NetApp ASA fits your environment — from sizing and deployment to long-term optimization.

Thrive with expert-led storage guidance

Technical Specifications

Exhaustive hardware and software metrics extracted directly from official documentation.

  • Base enclosure form factor
    2x2U modular
  • Base eclosure drive count
    Requires NS224
  • Power consumption (median)
    2718W (with NS224)

  • Max. drive count (NVMe)
    240
  • Max. raw capacity
    2.67 PB
  • Max. effective capacity
    11.4 PB
  • Supported NVMe drives
    15.3TB, 30.7TB

  • Cluster nodes
    12 Nodes (6 HA Pair)
  • Max. raw capacity
    16 PB
  • Max. effective capacity
    69 PB

  • PCIe expansion slots
    18
  • Max. FC ports
    56
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    56
  • Max. Ethernet speed
    Up to 200 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.0 GA or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

  • Base enclosure form factor
    4U
  • Base eclosure drive count
    48
  • Power consumption (median)
    1950W

  • Max. drive count (NVMe)
    240
  • Max. raw capacity
    2.67 PB
  • Max. effective capacity
    11.4 PB
  • Supported NVMe drives
    1.92TB, 3.84TB, 7.68TB, 15.3TB, 30.7TB

  • Cluster nodes
    12 Nodes (6 HA Pair)
  • Max. raw capacity
    16 PB
  • Max. effective capacity
    69 PB

  • PCIe expansion slots
    18
  • Max. FC ports
    56
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    56
  • Max. Ethernet speed
    Up to 200 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.0 GA or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

  • Base enclosure form factor
    4U
  • Base eclosure drive count
    48
  • Power consumption (median)
    1232W

  • Max. drive count (NVMe)
    240
  • Max. raw capacity
    2.67 PB
  • Max. effective capacity
    11.4 PB
  • Supported NVMe drives
    1.92TB, 3.84TB, 7.68TB, 15.3TB, 30.7TB

  • Cluster nodes
    12 Nodes (6 HA Pair)
  • Max. raw capacity
    16 PB
  • Max. effective capacity
    69 PB

  • PCIe expansion slots
    18
  • Max. FC ports
    56
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    56
  • Max. Ethernet speed
    Up to 200 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.0 GA or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

  • Base enclosure form factor
    2U
  • Base eclosure drive count
    24
  • Power consumption (median)
    512W

  • Max. drive count (NVMe)
    120
  • Max. raw capacity
    2.67 PB
  • Max. effective capacity
    11.4 PB
  • Supported NVMe drives
    1.92TB, 3.84TB, 7.68TB, 15.3TB, 30.7TB

  • Cluster nodes
    12 Nodes (6 HA Pair)
  • Max. raw capacity
    16 PB
  • Max. effective capacity
    69 PB

  • PCIe expansion slots
    8
  • Max. FC ports
    24
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    32
  • Max. Ethernet speed
    Up to 100 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.1 or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

  • Base enclosure form factor
    2U
  • Base eclosure drive count
    24
  • Power consumption (median)
    495W

  • Max. drive count (NVMe)
    72
  • Max. raw capacity
    2.21 PB
  • Max. effective capacity
    9.47 PB
  • Supported NVMe drives
    1.92TB, 3.84TB, 7.68TB, 15.3TB, 30.7TB

  • Cluster nodes
    8 Nodes (4 HA Pair)
  • Max. raw capacity
    8.84 PB
  • Max. effective capacity
    37.9 PB

  • PCIe expansion slots
    8
  • Max. FC ports
    24
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    32
  • Max. Ethernet speed
    Up to 100 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.1 or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

  • Base enclosure form factor
    2U
  • Base eclosure drive count
    24
  • Power consumption (median)
    432W

  • Max. drive count (NVMe)
    48
  • Max. raw capacity
    1.47 TB
  • Max. effective capacity
    6.26 PB
  • Supported NVMe drives
    1.92TB, 3.84TB, 7.68TB, 15.3TB, 30.7TB

  • Cluster nodes
    6 Nodes (3 HA Pair)
  • Max. raw capacity
    4.42 PB
  • Max. effective capacity
    18.8 PB

  • PCIe expansion slots
    8
  • Max. FC ports
    24
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    32
  • Max. Ethernet speed
    Up to 100 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.1 or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

  • Base enclosure form factor
    2U
  • Base eclosure drive count
    24
  • Power consumption (median)
    495W

  • Max. drive count (NVMe)
    48
  • Max. raw capacity
    1.47PB
  • Max. effective capacity
    6PB
  • Supported NVMe drives
    1.92TB, 3.84TB, 7.68TB, 15.3TB, 30.7TB

  • Cluster nodes
    8 Nodes (4 HA Pair)
  • Max. raw capacity
    5.8 PB
  • Max. effective capacity
    24 PB

  • PCIe expansion slots
    8
  • Max. FC ports
    24
  • FC port speeds
    Up to 64 Gbps
  • Max. Ethernet ports
    32
  • Max. Ethernet speed
    Up to 100 Gbps

  • Shelves
    NS224 (2U, 24 drives, 100Gbps NVMe)
  • Storage networking supported
    NVMe/TCP, NVMe/FC, FC, iSCSI
  • OS version
    ONTAP 9.16.1 P3 or later
  • Host/client OS supported
    Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware, macOS, ESX

Compare NetApp ASA Series

Select the right scale for your workload demands.

Compare NetApp ASA Series — capacity and port configuration by model.
Model Name Max Capacity Port Config Action
ASA A1K Max raw 2.67 PB / Max effective 11.4 PB (per HA-pair) Max 56 FC ports up to 64 Gbps; Max 56 Ethernet ports up to 200 Gbps; 18 PCIe expansion slots Get Quote
ASA A90 Max raw 2.67 PB / Max effective 11.4 PB (per HA-pair) Max 56 FC ports up to 64 Gbps; Max 56 Ethernet ports up to 200 Gbps; 18 PCIe expansion slots Get Quote
ASA A70 Max raw 2.67 PB / Max effective 11.4 PB (per HA-pair) Max 56 FC ports up to 64 Gbps; Max 56 Ethernet ports up to 200 Gbps; 18 PCIe expansion slots Get Quote
ASA A50 Max raw 2.67 PB / Max effective 11.4 PB (per HA-pair) Max 24 FC ports up to 64 Gbps; Max 32 Ethernet ports up to 100 Gbps; 8 PCIe expansion slots Get Quote
ASA A30 Max raw 2.21 PB / Max effective 9.47 PB (per HA-pair) Max 24 FC ports up to 64 Gbps; Max 32 Ethernet ports up to 100 Gbps; 8 PCIe expansion slots Get Quote
ASA A20 Max raw 1.47 TB / Max effective 6.26 PB (per HA-pair) Max 24 FC ports up to 64 Gbps; Max 32 Ethernet ports up to 100 Gbps; 8 PCIe expansion slots Get Quote
ASA C30 Max raw 1.47PB / Max effective 6PB (per HA-pair) Max 24 FC ports up to 64 Gbps; Max 32 Ethernet ports up to 100 Gbps; 8 PCIe expansion slots Get Quote

Ready to get started?

Get your data flowing from edge to core to cloud.

Talk to a specialist

Request a custom quote

Build a configuration with a Block-Optimized Storage specialist.

Request a quote

Download the datasheet

Full specs, performance metrics, and deployment notes.

Get the datasheet

Learn more

Explore resources

Datasheets, whitepapers, case studies, and technical documentation.

Explore resources

View solutions

Tailored storage and data management solutions for your workloads.

View solutions

Most secure storage on the planet FIPS 140-3 · NSA CSfC · DoDIN APL
Validated for top-secret data Only enterprise storage to hold this certification
Authorized NetApp Partner SANDataWorks · a division of BlueAlly
